PCB QTY vs PANEL QTY
PCB QTY vs PANEL QTY
Important: always specify the quantity of PCBs to be ordered for the calculation of the price (different from the quantity of panels).

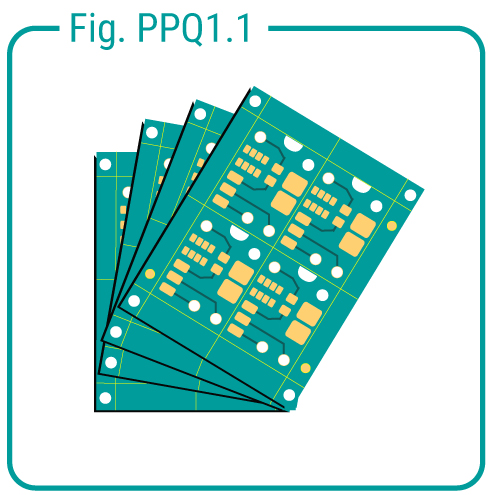

. Example 1 - duplicated PCBs (Fig. PPQ1.1)
Qty Circuits / Panel = 4
The quantity of circuits in the order page will be a multiple of this figure.
The order will be 4 .. 8 .. 12 ... 40 .. 200 .. 400 circuits (multiple of 4)
The order will be 4 .. 8 .. 12 ... 40 .. 200 .. 400 circuits (multiple of 4)

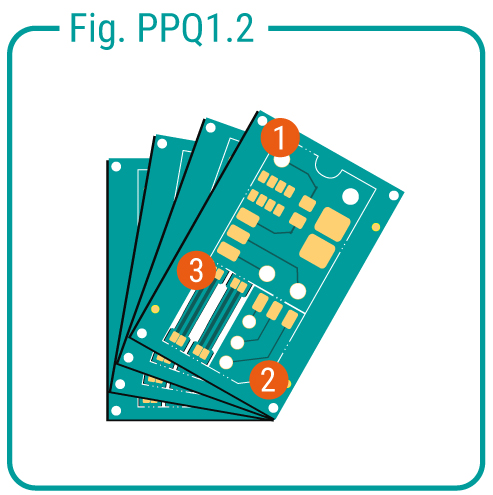

. Example 2 - Mixed PCBs (Fig. PPQ1.2)
Qty Circuits / Panel = 4 (1 PCB "1" + 1 PCB "2" + 2 PCB "3")
The quantity of circuits in the order page will be a multiple of this figure.
The order will be 4 .. 8 .. 12 ... 40 .. 200 .. 400 circuits (multiple of 4)
The order will be 4 .. 8 .. 12 ... 40 .. 200 .. 400 circuits (multiple of 4)
