SPACE BETWEEN PCBs
SPACE BETWEEN PCBs
It can be necessary to leave a space between the PCB in the following cases:
. Connector or component on the edge of the PCB
. Circuit with complex shapes
. Difficulties to separate circuit
. Circuit with complex shapes
. Difficulties to separate circuit
If milling option selected - Mini space : 2 mm.
see explanation in "milling separation".
If scoring option selected (V-CUT) : X = 0 et Y = 0
see explanation in "scoring separation".

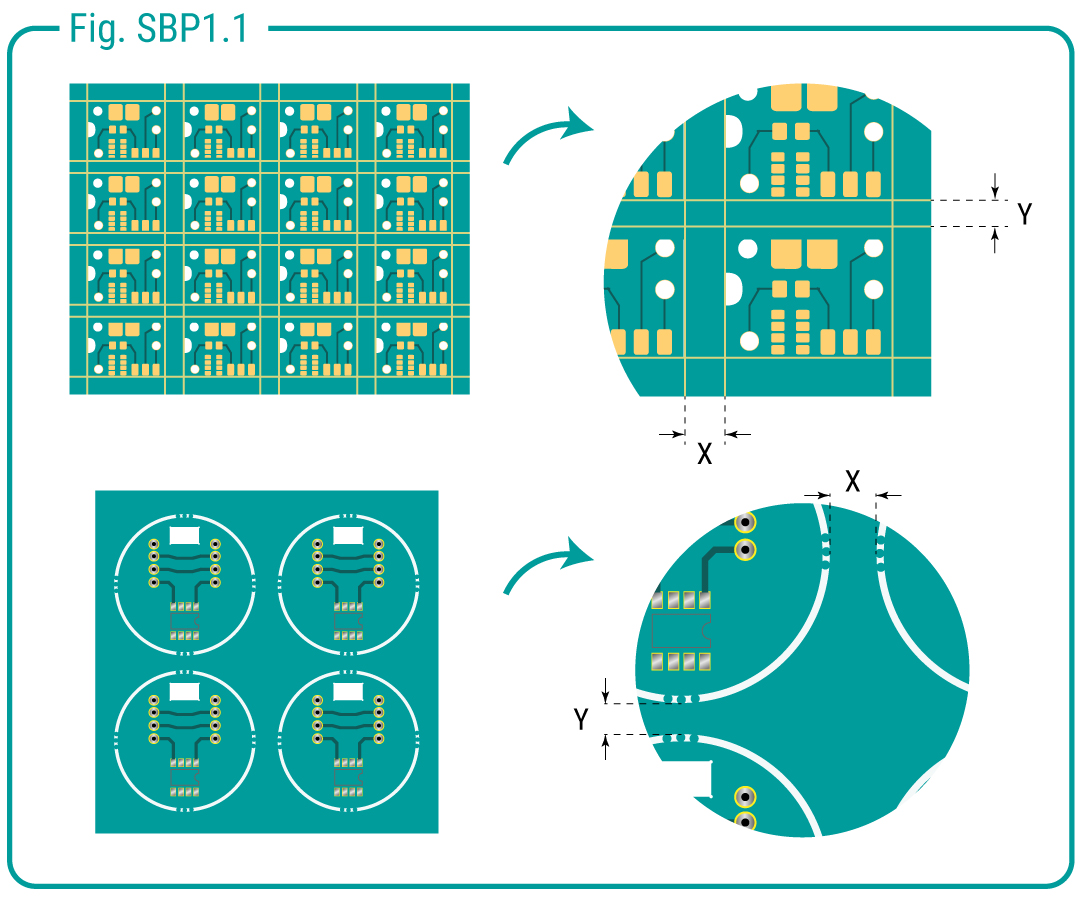

. Example (Fig. SBP1.1) : X = 4 mm ; Y = 2 mm
