SEPARATION - MILLING + POST STAMP
SEPARATION - MILLING + POST STAMP
For freeform PCBs arranged on a panel.
This method is only possible for this type of circuits.

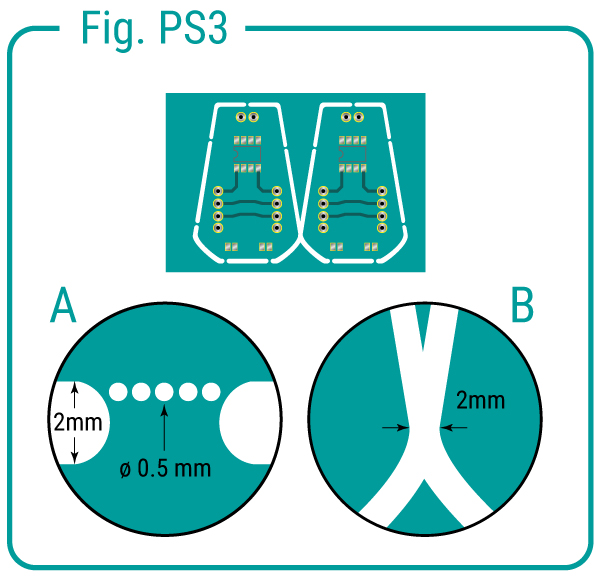

The milling machine cuts the contour of each circuit. Attachment points such as "postage stamp" help keep the PCB attached on the panel (A).
A minimum space of 2 mm must be maintained between the PCBs for cutting convenience purposes (B).
Important: post stamp impossible for IMS and CEM3 materials.
