BEVELING
BEVELING
Beveling is a card edge milling operation, with a specific angle, for example to facilitate the insertion of a card on a connector.
It is often linked to goldfinger option.
This operation can only be performed on a linear side.

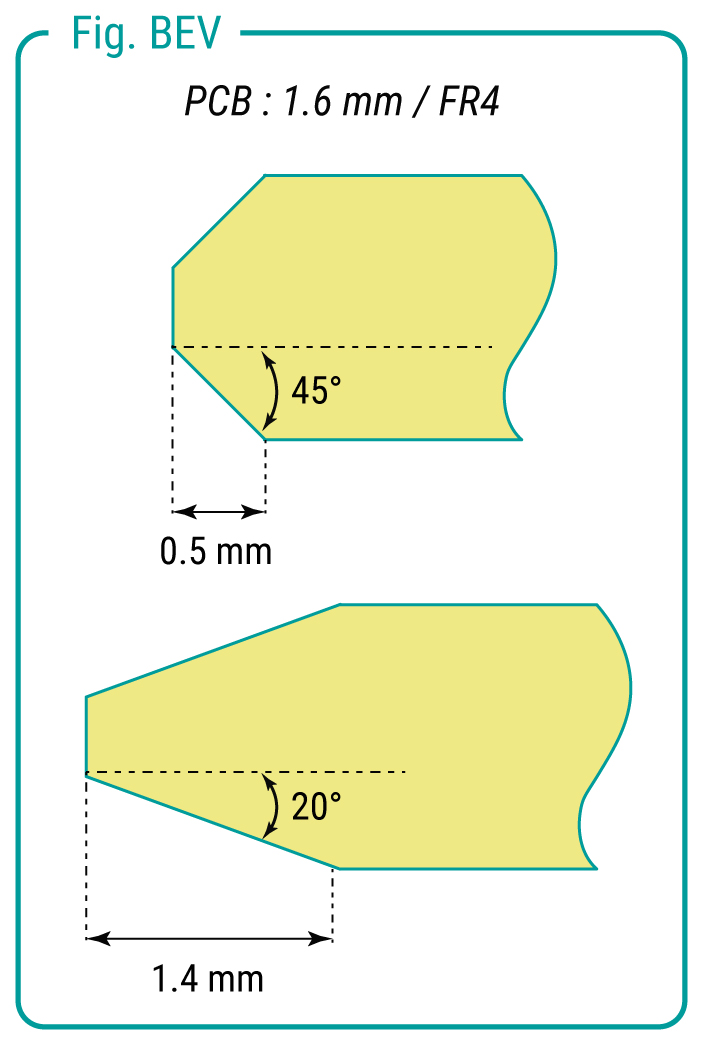

For ISA and PCI cards, the bevel is standardized:
ISA-Card: 45°
PCI-Card : 20°
Safe-PCB offers 3 angles: 20 / 30 / 45° on the TOP and / or BOT sides

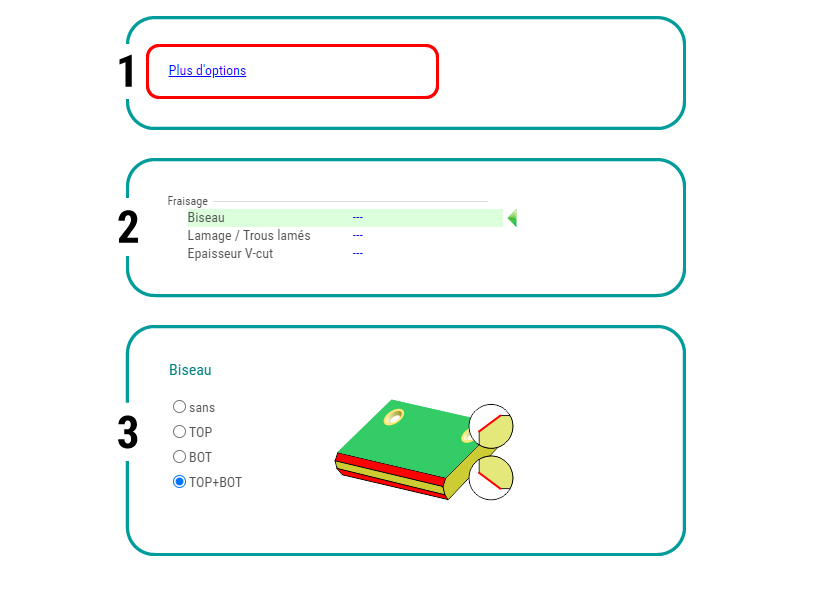

Where to find this option (quote and or order page):
