PCBs identical (duplicated): same PCB duplicated N times on a panel for easy components fitting by automatic feeding systems (SMD robots).

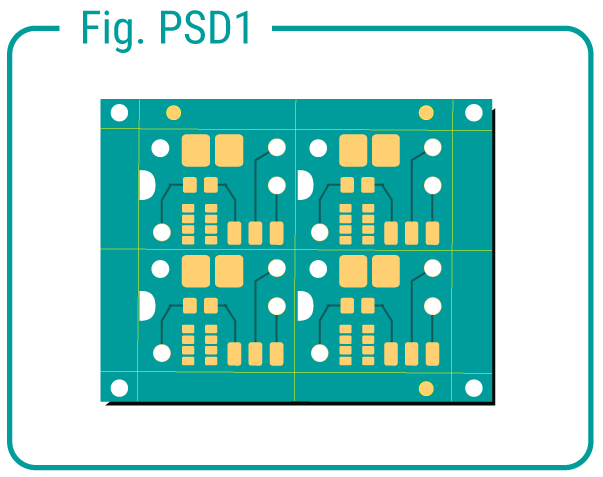

Example (Fig.PSD1) : panel of 4 identical PCBs

PCBs different (mixed): PCBs with different shape, size or function are mixed on the array. For each additional circuit board, additional fix charges are added to the total of the order.

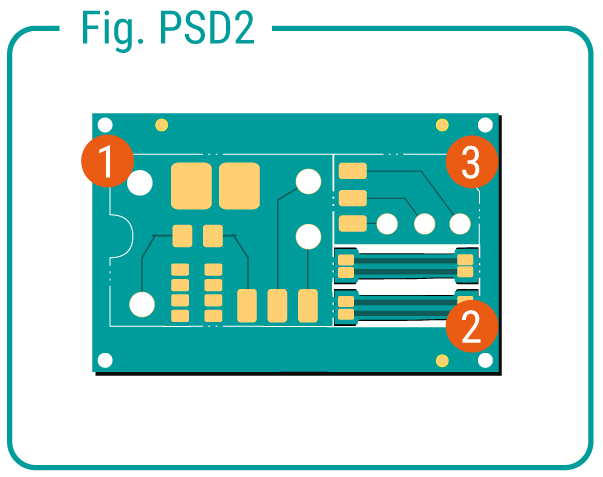

Example (Fig.PSD2) : panel of 3 different PCBs.

The price is calculated based on the following parameters:

. Total X and Y dimensions of the panel.
. Number of different PCBs.
. Total quantity of PCBs on the panel.
